 제품소개 > 릴레이 > PART 5 > DY3 |
  |
| 1. Features |
- Compact slim design
- TV-rated type available
- High dielectric withstanding 10,000V surge |
| 2. Sealed Types Availability |
|
| 3. Latching Types Availability |
 |

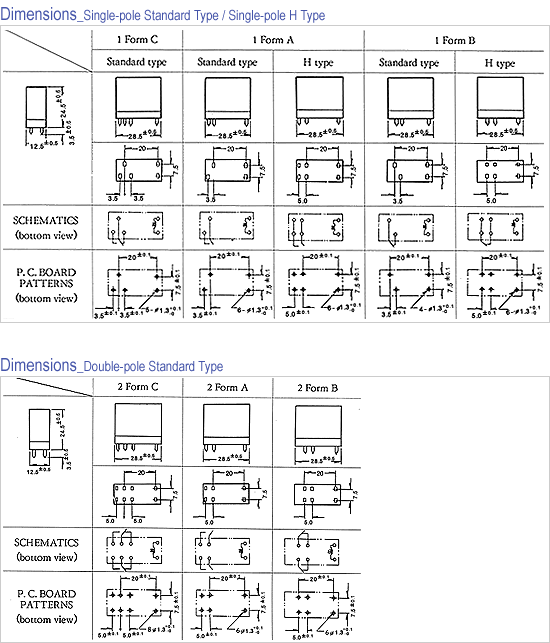

| 4. Mounting Method |
Plug-in |
|
| PC Board |
|
| Top-mount |
|
| 5. Contact Arrangement |
1A, 1B, 1C, 2A, 2C |
| 6. Contact Raiting (resistive) |
(1C) 10A 250VAC
(1A) 10A 230VDC
(2C) 15A 250VAC
(1A) 15A 230VDC |
| 7. Contact Material |
Silver alloy
(2C : Gold ovelay) |
8. Expected Life
8. (min. operations) |
Electrical (at rated load) |
105 |
| Mechanical |
2 X 107 |
| 9. Breakdown Voltage |
Between Open Contacts |
1,000VAC |
| Between Contact Sets |
3,000VAC |
| Between Contacts & Coil |
5,000VAC |
| Between Live Parts & Ground |
- |
| 10. Surge Withstand Voltage |
10,000V surge |
| 11. Coil Voltage |
(DC)5,6,9,12,18,24,48 |
| 12. Norminal Operating Power |
0.72W(Standard Type)
0.5W(High Sensitivity Type) |
| 13. Security Standards |
UL,CSA,TUV,SEMKO |
|
 |
|
|
|
