 제품소개 > 릴레이 > PART 5 > 832AW/832AWP |
  |

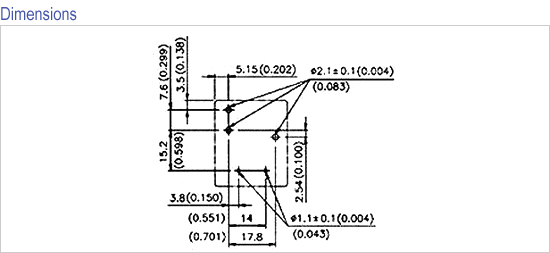

| Size (L×W×H) ㎜ No including terminals |
50×28.2×28 |
| Contact Configuration |
|
| Max. Allowable Contact Current(A) |
|
| Contact Ratings Resistive Load |
30A/277VAC
20A/30VDC
2HP 250VAC
1HP 250VAC
TV-5 |
20A/277VAC
20A/30VDC
2HP 250VAC
1HP 250VAC
TV-5 |
|
| Coil Voltage(DC) |
5~110VDC |
| Power Consumption(DC) |
0.93W |
| Mechanical Life(Min.) |
1×107 |
| Electrical Life(Min.) |
1×105 |
| Open Contact |
1500V |
| Contact and Coil |
4000V |
| Safety Approval |
UL, CSA, VDE |
|
 |
|
|
|
