 제품소개 > 릴레이 > PART 4 > HG |
  |
 |
|
|
| 1. Features |
● 1 Form A or 1 Form C
● Standard and Sensitive Coils
● Sealed and Unsealed Type Available
● UL / CUR Approved E197546
|
| 2. CONTACT DATA |
|
| Contact Form |
1 Form A |
1 Form C |
Contact resistance
Max. (At 1A 6VDC) |
100 mΩ |
| Contact Material |
Silver Alloy |
| Contact Rating
(Res. Load) |
5A 250VAC
5A 3VDC |
Standard |
High power |
N.C. 3A
N.O. 5A |
N.C. 5A
N.O. 5A |
|
| Switching Voltage |
250VAC / 30VDC (Max) |
| Switching Current |
5A |
| Max.Switching Power |
| 1250VA |
1250VA(N0)
750VA(NC) |
1250VA |
|
| Electrical Life |
100,000operations
(At 30 operations / minute) |
| Mechanical Life |
10,000,000 operations |
| 3. GENERAL DATA |
|
| Insulation Resistance |
1000M Ω Min. at 500VDC |
| Dielectric Strangth |
Open Contacts |
1,000VAC (For one minute) |
| Contacts
and Coil |
2,000VAC (For one minute) |
| Surge Voltage between
contacts and coil |
4,000VAC
(At 2 x 10 micro sec) |
| Operate Time |
10ms |
| Release Time |
5ms |
| Temperature Rise |
Max. 55℃ |
| Ambient Temperature |
-40 ~ 85℃ |
| Shock Resistance |
100m/s2 |
| Vibration Resistance |
10 ~ 55Hz 10g,
Amplitude of 3.3mm |
| Humidity |
45 ~ 85% |

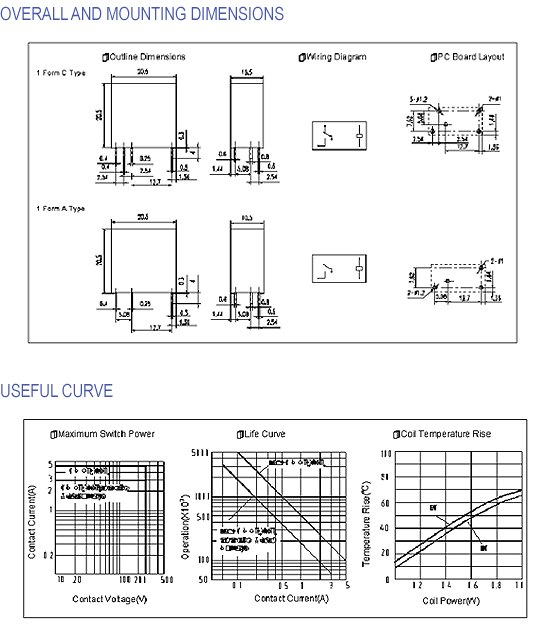

| Dimension |
20.5 x 20.5 x 10.5mm |
| Weight |
Approx. 8g |
| Construction |
Sealed and unsealed |
| 4. COIL DATA |
|
| Coil Consumption |
0.36W, 0.25W |
| Coil Voltage |
3 ~ 48 VDC |
| Coil Resistance |
See below table |
|
| 5. TABLE |
Nominal
Voltage
VDC |
Pick-up
Voltage
VDC |
Drop-out
Voltage
VDC |
Coil
Current
mA |
Coil
Resistance
Ω |
Pick-up
Voltage
VDC |
Drop-out
Voltage
VDC |
Coil
Current
mA |
Coil
Resistance
Ω |
| |
Standard Coil, 0.36W |
Sensitive Coil, 0.25W |
| 3 |
2.1 |
0.15 |
12 |
25±10% |
2.2 |
0.15 |
8.3 |
36±10% |
| 5 |
3.5 |
0.25 |
72 |
69±10% |
3.6 |
0.25 |
50 |
100±10% |
| 6 |
4.2 |
0.3 |
60 |
100±10% |
4.3 |
0.3 |
41 |
145±10% |
| 9 |
6.3 |
0.45 |
40 |
225±10% |
6.5 |
0.45 |
28 |
325±10% |
| 12 |
8.4 |
0.6 |
30 |
400±10% |
8.6 |
0.6 |
21 |
575±10% |
| 18 |
12.6 |
0.9 |
20 |
900±10% |
13 |
0.9 |
14 |
1300±10% |
| 24 |
16.8 |
1.2 |
15 |
1600±10% |
17.3 |
1.2 |
10 |
2310±10% |
| 48 |
33.6 |
2.4 |
7.5 |
6400±10% |
34.6 |
2.4 |
5 |
9220±10% |
|
| |
| 6. ORDERING INFORMATION |
ex) HG-1AT-12SH
※ Additional "(555)" for RoHs products
and contact material AgSnO2
"(554)" for RoHs products and contact
material AgNi |
HG |
Model Name |
| 1A |
1A: SPST, 1C: SPDT |
| T |
T: High Power, Nil: Standard |
| 12 |
Coil Voltages : 3, 5, 6, 9, 12, 18, 24, 48Vdc |
| S |
S: Sealed type, Nil: Standard type |
| H |
H: Sensitive type, Nil: Standard type |
|
| |
| |
|
 |
|
 |
|
|
|
