1. Features

● 20A Switching capability
● 10A Continuous rating
● Small size with high contact  rating

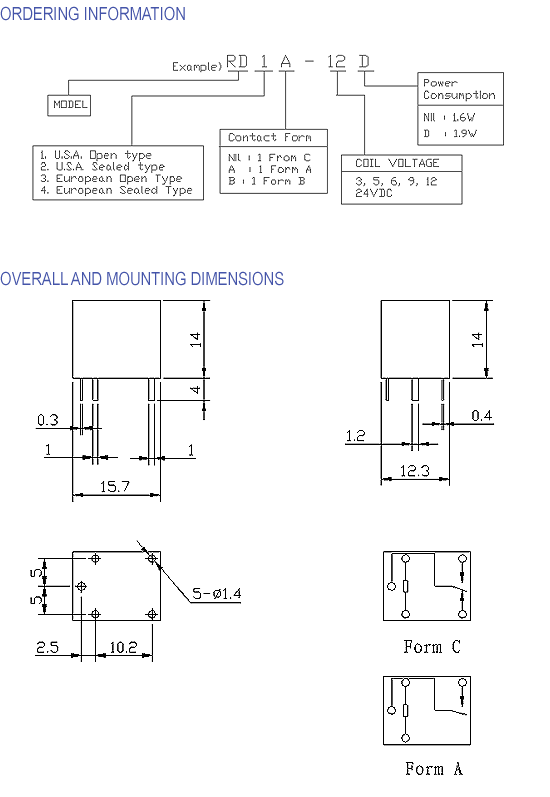

Size (L x W x H) 26.2 x 21.4 x 21.5mm
2. CONTACT DATA
Contact Form 1A 1C
Contact Material AgNiAgSnO²
Contact Ratings NO:20A14VDC7A/120VAC NC:12A/14VDC 7A/120VAC
Max Switching Voltage 16VDC
Max Switching Current 25A
Max Switching Power 400W, 840VA
Contact Resistance 100m ohm Max. at 6VDC 1A

Life Expectancy

Electrical 100,000 Operations (at 30 ops a minute)
Machanical 10,000,000 Operations
3. OPERATION CONDITION
Insulation Resistance 100MΩ min (at 500VDC)
Dielectric Strength Between Open Contacts 500VAC(for one minute)
Contacts and coil 500VAC(for one minute)
Operate Time 10ms
Release Time 5ms
Temperature Range - 40 to 85°C
Shock Resistance Functional 10G
Destructive 100G
Vibration Resistance 10-55Hz, 2.0mm
Humidit 35-85%
Safety approval (UL) E197546
Weight Approx 6g
4. COIL PARAMETER
Nominal
Voltage
(VDC)		 Coil Resistance at 20°C ±10%(ohm) Max Operate
Voltage
(VDC)		 Min Release
Voltage
(VDC)		 Max Applicable
Voltage
(VDC)
0.6W 0.8W
3 15 11.25 1.95 0.24 3.9
6 60 45 3.9 0.48 7.8
9 135 100 5.85 0.72 11.7
12 240 180 7.8 0.96 15.6
24 960 720 15.6 1.92 31.2
