 제품소개 > 릴레이 > PART 4 > HU |
  |
 |
|
|
| 1. Features |
● 1 Form A configurations
● Extremely small footprint utilizing PCB area
● Highly efficient magnetic circuit for 0.2W
|
| 2. CONTACT DATA |
|
| Contact Form |
1 Form A |
| Contact Material |
Silver Alloy |
| Contact rating |
3A 277VAC / 3A 30VDC |
| Max. Switching current |
3A |
| Max. Switching Voltage |
277VAC / 30VDC |
| Max. Switching Power |
831VA / 90W |
| Contact resistance |
100mΩ at 6VDC 1A |
| Electrical Life |
200,000ops
at 3A 125VAC, 3A 30VDC
100,000ops at 3A 250VAC |
| Mechanical Life |
5,000,000 operations |
| 3. GENERAL DATA |
|
| Insulation Resistance |
1000M Ω Min. at 500VDC |
| Dielectric Strangth |
Open Contacts |
750VAC (For one minute) |
| Contacts and Coil |
4,000VAC (For one minute) |
| Operate Time |
10ms |
| Release Time |
10ms |
| Surge Voltage between contact and coil |
10KV (1.5 x 50 micro s) |
| Temperature Range |
-40℃ ~ 70℃ |
| Temperature Rise |
Max. 45 C with normal
coil voltage and 3A
contact carrying current |
| Shock Resistance |
Functional |
10G |
| Damage Limit |
100G |
| Vibration Resistance |
10 ~ 150Hz 10g / 5g |
| Humidity |
35 ~ 85% |

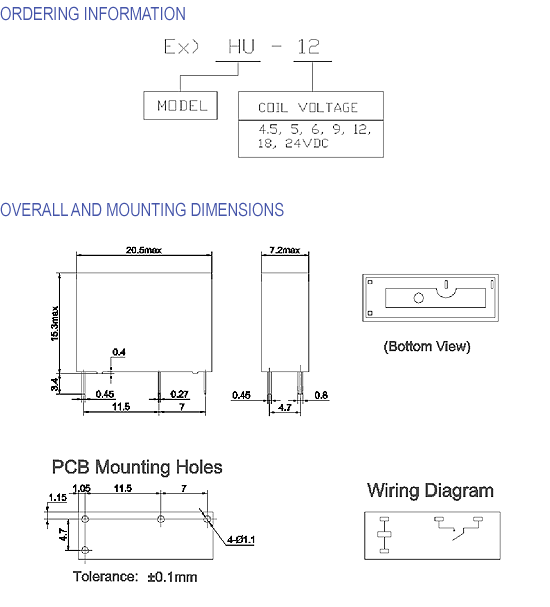

| Dimension |
29 x 12.7 x 15.7mm |
| Weight |
Approx. 4g |
| UL |
E197546 |
| 4. COIL DATA |
|
| Coil Consumption |
0.20W |
| Coil Voltage |
4.5 ~ 24 VDC |
| Coil Resistance |
See below table |
|
| 4. TABLE |
Nominal? Voltage
(VDC) |
Pick-up Voltage
VDC |
Drop-out Voltage
VDC |
Max allowable Voltage
at 20 C |
Coil Resistance at 20±10%(Ω) |
| 4.5 |
3.38 |
0.23 |
4.95 |
101 |
| 5 |
3.75 |
0.25 |
5.5 |
125 |
| 6 |
4.5 |
0.3 |
6.6 |
180 |
| 9 |
6.75 |
0.45 |
9.9 |
405 |
| 12 |
9 |
0.6 |
13.2 |
720 |
| 18 |
13.5 |
0.9 |
19.8 |
1,620 |
| 24 |
18 |
1.2 |
26.4 |
2,880 |
|
| |
|
 |
|
 |
|
|
|
